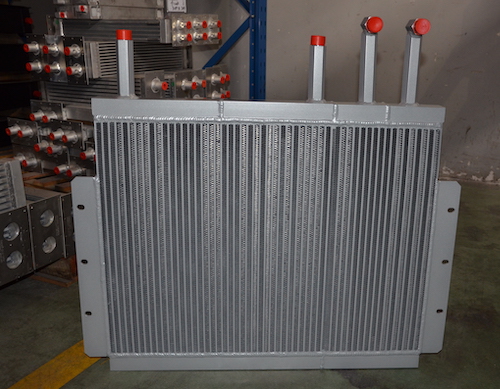

Aluminum bar plate fin air charge inter cooler against high pressure and temp shock

Brand Name : ADV

Model Number : ADV -WC-01

Certification : ISO9001

Place of Origin : Changzhou China

MOQ : 1 Unit

Supply Ability : 1~50 + Units + 25 Working Days

Delivery Time : 7~15 Working Days

Packaging Details : Wooden Packing

Product : Bar plate fin air charge inter cooler

Material : AL3003

Technic : Vacuum Brazing

Max Size : 2.4 Meters Length

Max Pressure : 3.5 Mpa

Test : Leak Test & Performance Test & Pressure Pulse Test & Vibration Test

Usage : high pressure air cooling solutions

Warranty : 12 Month

Contact Now

Aluminum Bar Radiator

Description

Whether you simply need a great looking, high performance high pressure air cooling solutions to fit the heat thermal requirement of your project, or a fully custom one designed from scratch, we can always find the perfect solution for you. Our design and engineering team is ready to assist you to make sure your air charge inter cooler has the right fit and configuration, including all the features you need to make sure it performs to your high expectations.

Service Capability

Wide range of design patterns, flow configurations, fittings, and mounting options.
High performance electric fans & aluminum shroud options.
Performance or Heavy Duty applications.
Short production lead-times.

Application:

Construction Machinery Cooling Solution
Compressed Air System Cooling Solution
Hydraulic System Cooling Package
Agriculture Machinery Cooling Solution
Wind Power Generation Cooling Solution
Railway Cooling Solution
Automotive Cooler

Aluminum bar plate fin air charge inter cooler against high pressure and temp shock

LAB & Test

1.Leak Test of Every Unit

2.Performance Test

Performance Test:	Compressed Air System	Water Glycol System	Water Glycol System
Flow:	0-48Nm3/min	400L/min	600L/min
Temp:	≤200°C	≤100°C	≤110°C
Max. heating power:	110KW	180KW	240KW

3. Salty Spay Test

we can offer C5 standard preservative treatment preservative treatment, please contact us fr more information

Aluminum bar plate fin air charge inter cooler against high pressure and temp shock

Project Experience

3D model drawing available for customized air charge inter cooler
Prototype testing and confirmation
Steel frame support, Front to Back type design and manufacturing
Easy mounting and maintain, Good anti-vibration
Stable Performance & Low Pressure Drop
Compact Design & Light Weight
Motor & Fan is Optional
12 Month Global Warranty
OEM Production is Offered

Purchasing Guide

You just need to tell us your specific requirements and environmental parameters so that we can make professional quotations accordingly.

Please advise:

Oil parameter	Fluid
	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Air parameter	Flow
	Inlet temperature (℃)
	Cooling power (kw)
	Max. allowable pressure drop
	Max. work pressure (MPa)
Cool air parameter	Flow & Pressure curve
	Inlet temperature (℃)
	Air trace
Mounting	Max overall dimension
	Location of connections
	Requirement of structure
Working condition

Be free to contact us if you need any further supporting, thank you!
